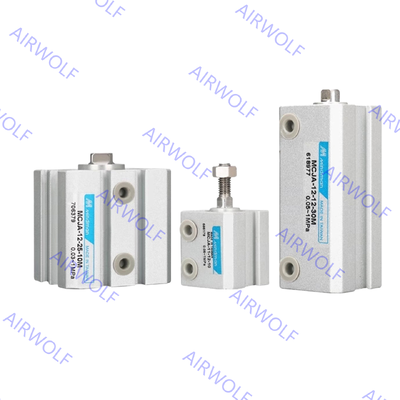

Name: MCJA-11-20-25 MCJA-11-20-30 MCJA-11-20-35 MCJA-11-20-40 Mindman Double acting Compact Cylinder
Brand: Airwolf Automation
SKU: MCJA-11-20-25, MCJA-11-20-30, MCJA-11-20-35, MCJA-11-20-40
Price: 34.00 USD
Availability: InStock

Nhà Sản phẩm Khí nén Air xi lanh

MCJA-11-20-25 MCJA-11-20-30 MCJA-11-20-35 MCJA-11-20-40 Mindman Double acting Compact Cylinder

Thông tin chi tiết sản phẩm:

Nguồn gốc:	Đài Loan, Trung Quốc
Hàng hiệu:	Mindman, AIRWOLF or OEM
Chứng nhận:	CE, ISO9001
Số mô hình:	MCJA-11-20-25, MCJA-11-20-30, MCJA-11-20-35, MCJA-11-20-40

Thanh toán:

Số lượng đặt hàng tối thiểu:	1 mảnh
Giá bán:	5-63USD
chi tiết đóng gói:	Hộp, Thùng, Pallet, Túi Nhựa
Thời gian giao hàng:	1-7 ngày làm việc
Điều khoản thanh toán:	T/T, Công Đoàn Phương Tây, PayPal
Khả năng cung cấp:	1000 chiếc mỗi tuần

Tiếp xúc

Chi tiết sản phẩm

Mã mặt hàng:	MCJA-11-20-25, MCJA-11-20-30, MCJA-11-20-35, MCJA-11-20-40	Chất liệu thân máy:	Hợp kim nhôm
Vật liệu đóng gói Piston:	NBR	Áp suất làm việc:	0,05 ~ 1MPa
Nhiệt độ hoạt động:	-5~+60oC(Không đóng băng)	Phương tiện làm việc:	Không khí
Kích thước lỗ khoan:	20mm	Chức năng:	Hành động kép
Làm nổi bật:	Mindman double acting compact cylinder , Pneumatic air cylinder with warranty , Compact air cylinder MCJA series

MCJA-11-20-25 MCJA-11-20-30 MCJA-11-20-35 MCJA-11-20-40 Mindman Double acting Compact Cylinder

The Mindman MCJA Series is a line of ultra-compact, lightweight pneumatic cylinders built for machinery where installation space is at a premium, offering both single-acting and double-acting configurations across a practical bore-size range so engineers can specify the right force without oversizing the footprint. Its low-profile body keeps the actuator flush with adjacent components, making it a natural fit for tandem or closely packed cylinder layouts where a standard ISO-profile cylinder would simply not fit.

Order Codes:

Item Code	Piston (mm)	Stroke (mm)	Type
MCJA-11-20-25	20	25	Double acting
MCJA-11-20-30	20	30	Double acting
MCJA-11-20-35	20	35	Double acting
MCJA-11-20-40	20	40	Double acting

Specification:

Model		MCJA
Acting type		Double acting / Single acting							Double acting
Tube I.D. (mm)		12	16	20	25	32	40	50	63	80	100
Port size		M5×0.8				Rc1/8		Rc1/4			Rc3/8
Medium		Air
Operatingperssurerange (MPa)	Double acting	0.05~1		0.03~1		0.02~1
	Single acting	0.2~1		0.15~1		0.1~1			—
Proof pressure		1.5 MPa
Ambient temperature		-5°C~+60°C (No freezing)
Available speed range		50~500 mm/sec

Material:

MCJA-11-20-25 MCJA-11-20-30 MCJA-11-20-35 MCJA-11-20-40 Mindman Double acting Compact Cylinder

Dimensions:

MCJA-11-20-25 MCJA-11-20-30 MCJA-11-20-35 MCJA-11-20-40 Mindman Double acting Compact Cylinder
